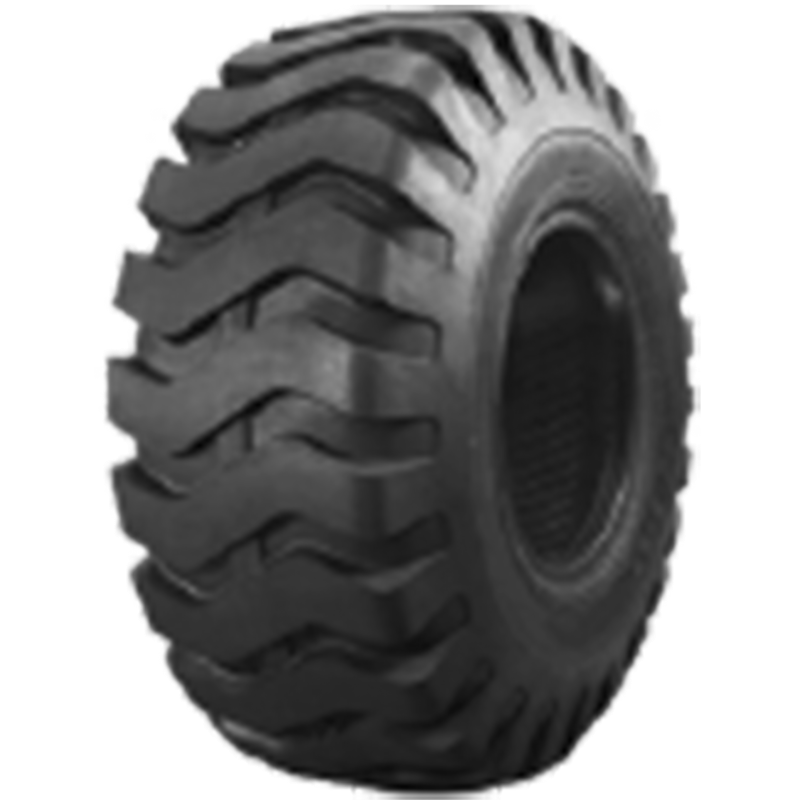

W-1

W-1
W-1 - Image 2

W-1

  • The tread compound provides cut-&-chip-resistant properties & suits best for loading & dozing operations.
  • Aggressive, durable lug design, non-directional tread design & wide base construction, which can provide high flotation, excellent traction, improved stability & reduced ground pressure.
  • The specially-formulated synthetic rubber compound can offer excellent cutting & heat resistance & help to prevent sidewall cracking.
SIZE TT/ TL RIM PLY RATING TREAD DEPTH (mm) TRA LOAD/SPEED INDEX SECTION WIDTH OUTER DIAMETER SLR RC INFLATION PRESSURE LOAD CAPACITY SPEED
(mm) (mm) (mm) (mm) (kPa) (kg) (Km)
23.5-25 TT 19.50/2.5″ 16 31.5 E3/L3 / 595 1615 / / 300 225 9500 6150 /
14.00-24 TT 10″ 16 25.5 E3/L3 / 375 1370 / / 550 375 7300 4000 /
17.5-25 TL 14.00/1.5″ 20 25.5 E3/L3 / 445 1350 / / 575 400 8250 5000 /
20.5-25 TL 17.00/2.0″ 20 30 E3/L3 / 520 1490 / / 450 325 9500 6000 /
20.5-25 TL 17.00/2.0″ 16 30 E3/L3 / 520 1490 / / 350 275 8250 5450 /
23.5-25 TL 19.50/2.5″ 24 31.5 E3/L3 / 595 1615 / / 475 350 12500 8000 /
23.5-25 TL 19.50/2.5″ 20 31.5 E3/L3 / 595 1615 / / 375 300 10900 7300 /
26.5-25 TL 22.00/3.0″ 28 35 E3/L3 / 675 1750 / / 475 350 15500 10000 /
