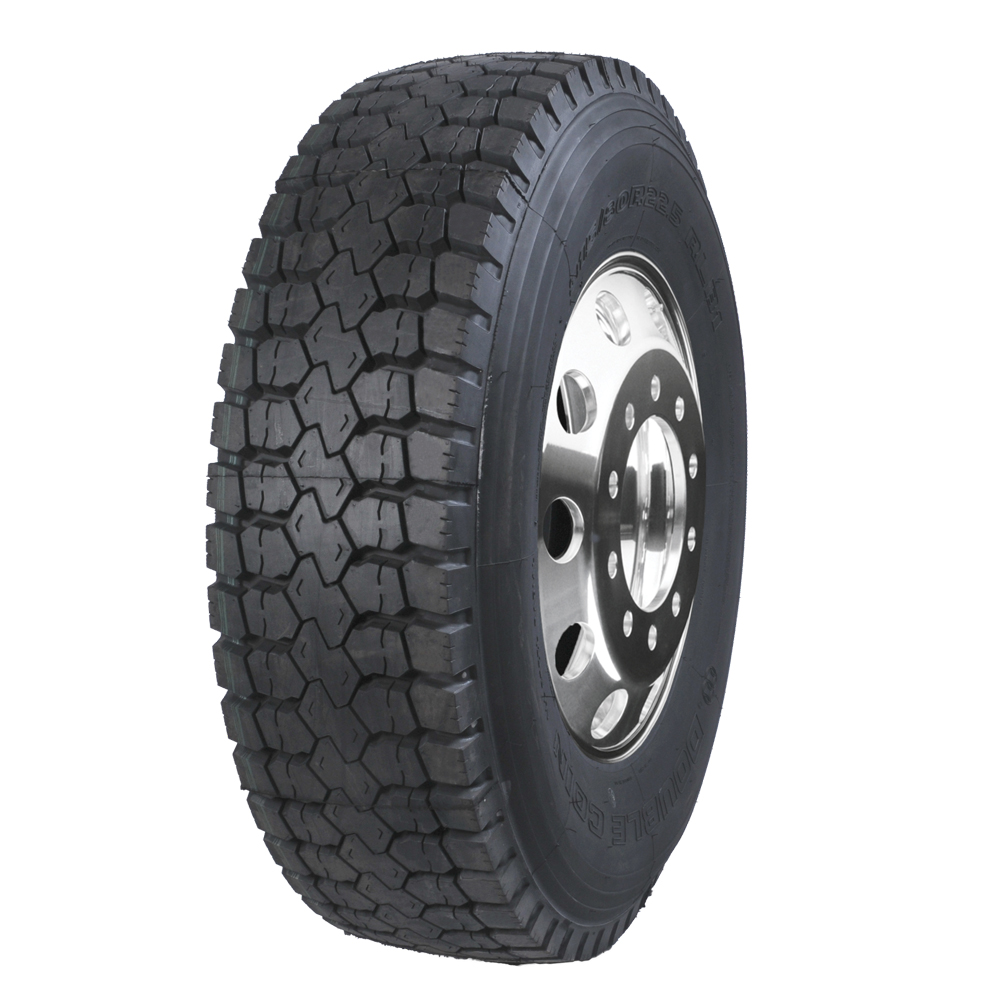

RLB1

Open shoulder design provides excellent traction in wet and dry conditions; deep tread depth for long original mileage.
Full- depth siping provides excellent performance throughout the life of the tread.
Heavy-duty casing for stability and promotion of retreading.
Tubeless & tube-type sizes for special applications.

SIZE	LOAD INDEX/ SPEED SYMBOL	STD. RIM	TREAD DEPTH	SECTION WIDTH MM	OVERALL DIAMETER	MAX LOAD		PRESSURE
SIZE	LOAD INDEX/ SPEED SYMBOL	STD. RIM	TREAD DEPTH	SECTION WIDTH MM	OVERALL DIAMETER	kgs	lbs	kPa	PSI
11R22.5	148/145M	8.25	21	276	1057	3150	2900	850	850
12R22.5	152/149J	9.00	18.5	300	1093	3550	3250	930	930
295/80R22.5	152/149M	9.00	21	296	1053	/	/	/	/
315/80R22.5	156/152M	9.00	21	310	1087	4000	3550	830	830
