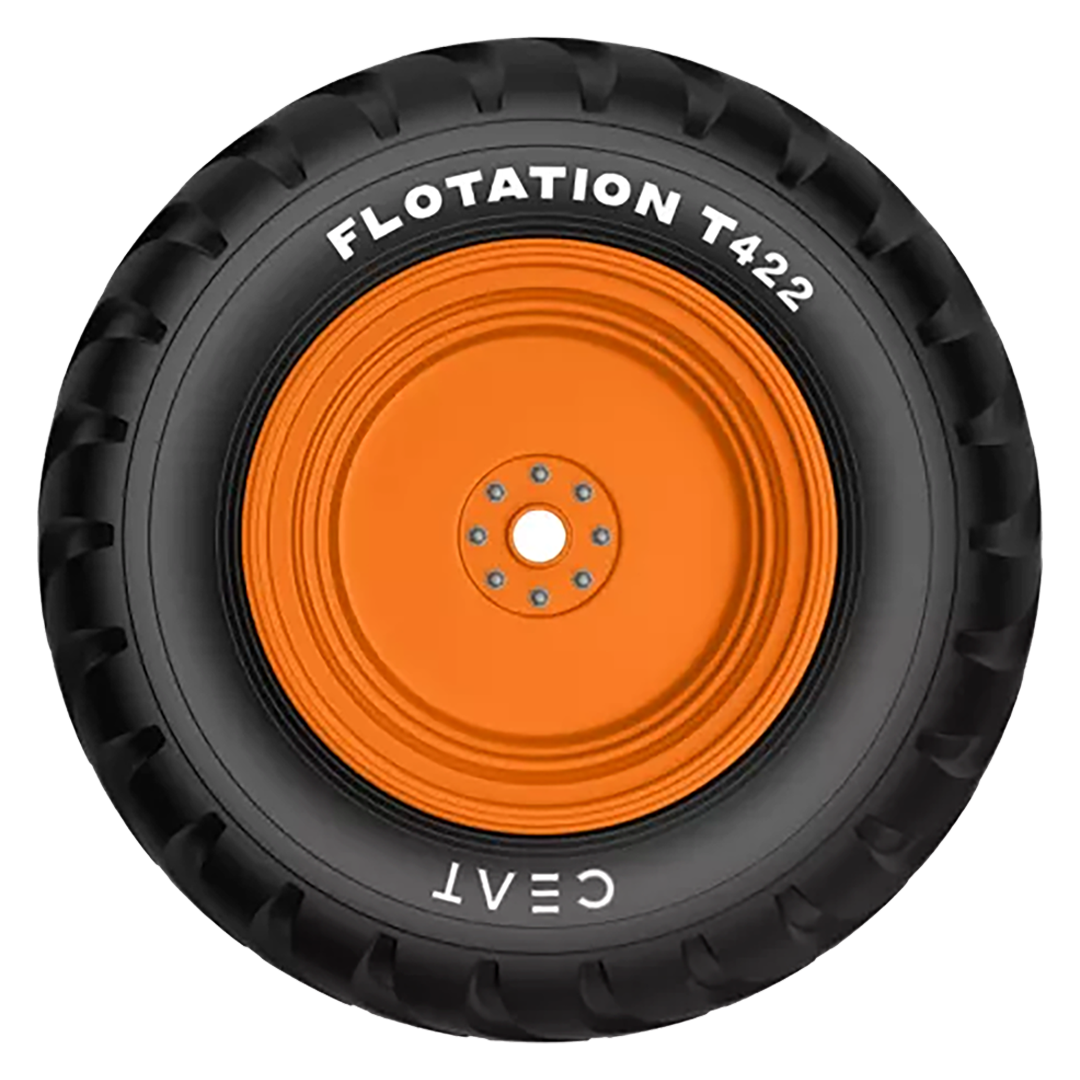

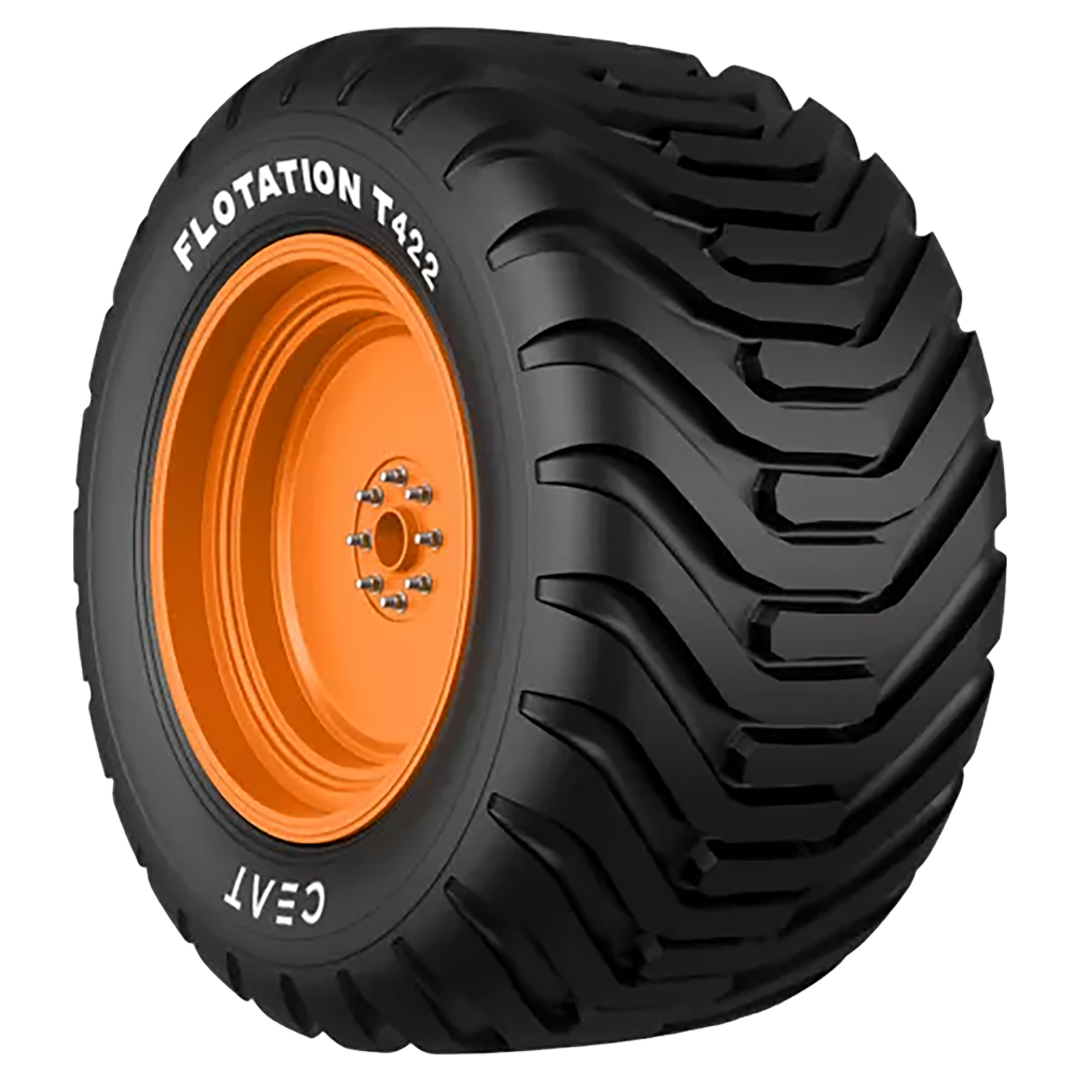

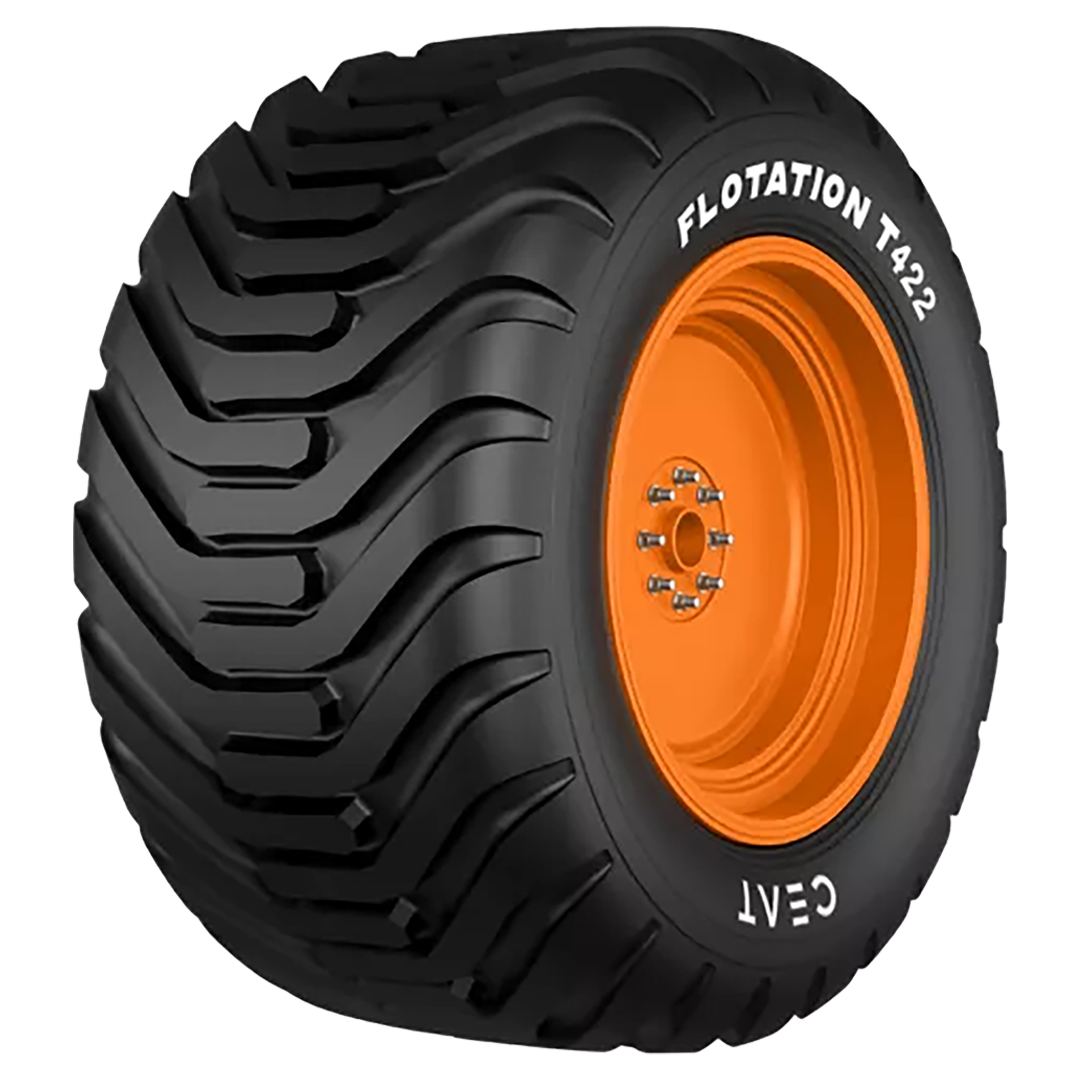

Tough nylon casing & strong bead bundle for durability in FLOTATION T422 I1 flotation tires. | High load carrying capability due to robust construction. | Larger tire volume & footprint to decrease soil compaction. | Rounded shoulders to minimize crop damage.
| Size | Rim | Ply Rating | Inflated tyre dimension | Static Loaded Radius | Rollin Circum. | Load Index | Inflated Pressure | Recommended load, kg | ||||||||||||
| SW | OD | Speed | bar | Speed, (km/h ) | ||||||||||||||||
| (mm) | (mm) | (mm) | (mm) | Symbol | Free Rolling | Drive wheel | ||||||||||||||
| 10 | 20 | 25 | 30 | 40 | 50 | 10 | 20 | 25 | 30 | 40 | 50 | |||||||||
| 500/50-17 | 16″ | 18 | 503 | 932 | 436 | 2796 | 157 A8/145 A8 | 4 | / | / | / | / | / | / | / | / | / | / | / | / |
| 550/45-22.5 | 16″ | 16 | 550 | 1070 | 470 | 3205 | 159 A8/147 A8 | 3.2 | / | / | / | / | / | / | / | / | / | / | / | / |
| 600/50-22.5 | 20″ | 16 | 550 | 1240 | 540 | 3725 | 168 A8/ 155 A8 | 3 | / | / | / | / | / | / | / | / | / | / | / | / |
