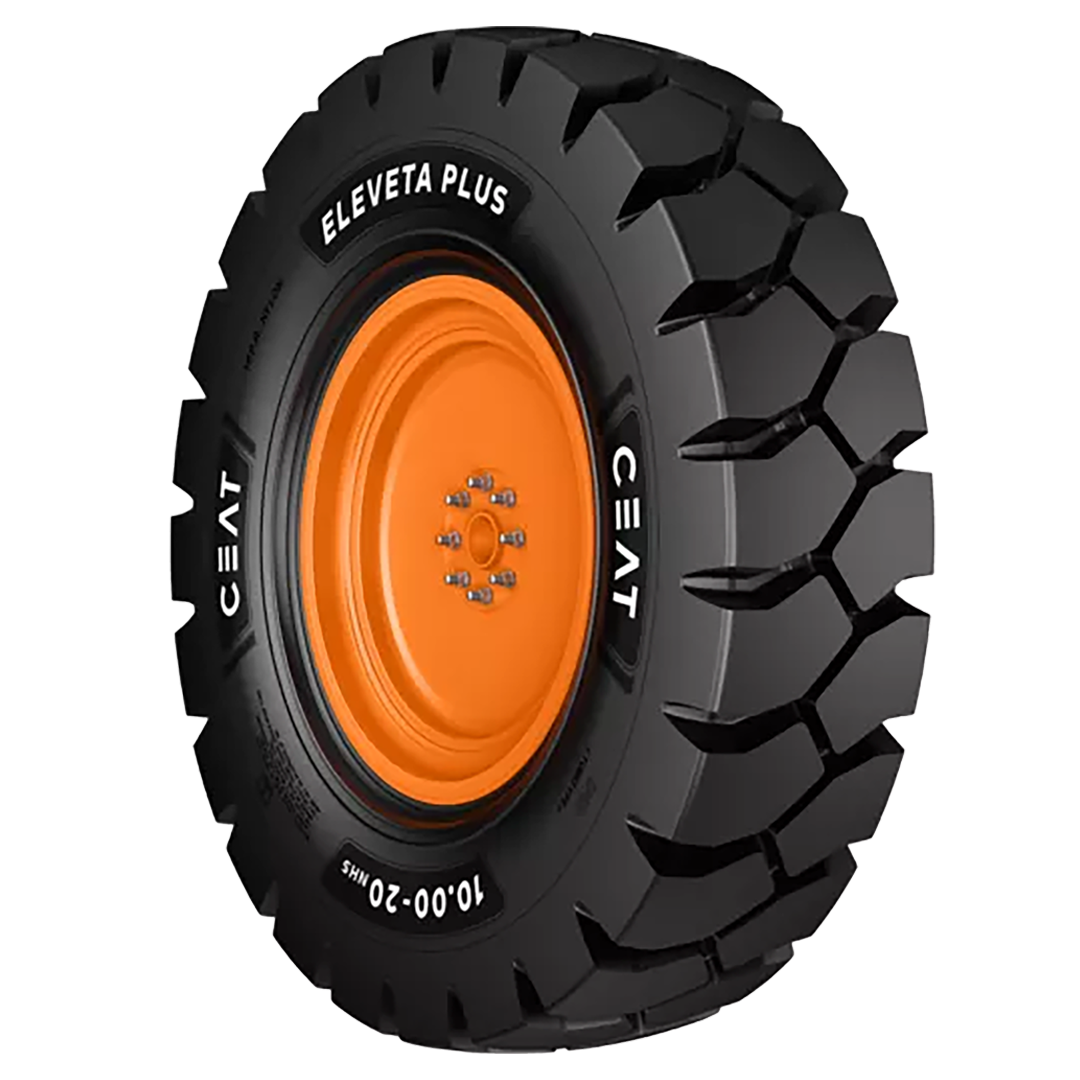

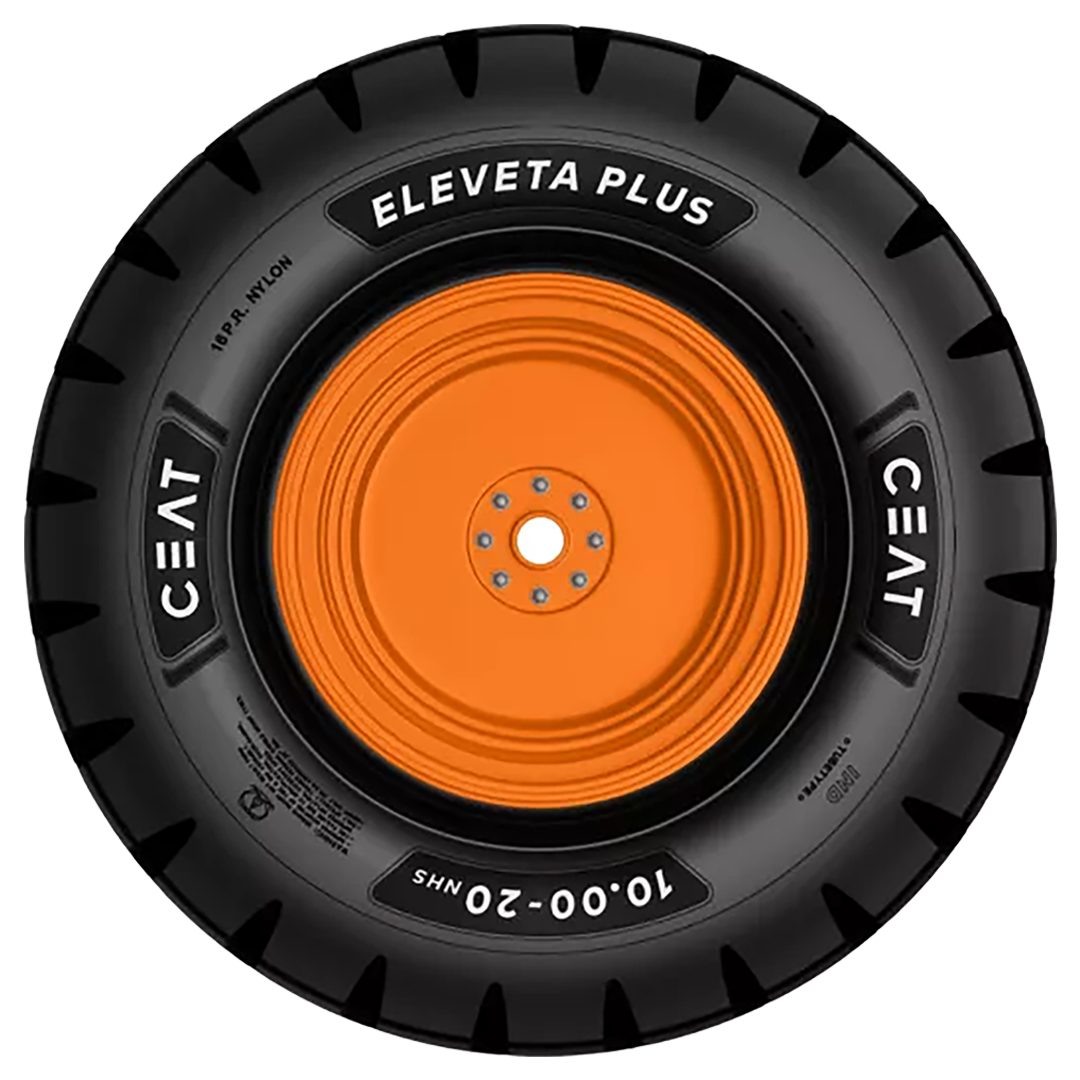

ELEVETA PLUS

ELEVETA PLUS is a specially designed heavy-duty tyre ideal for forklifts & material handlers.

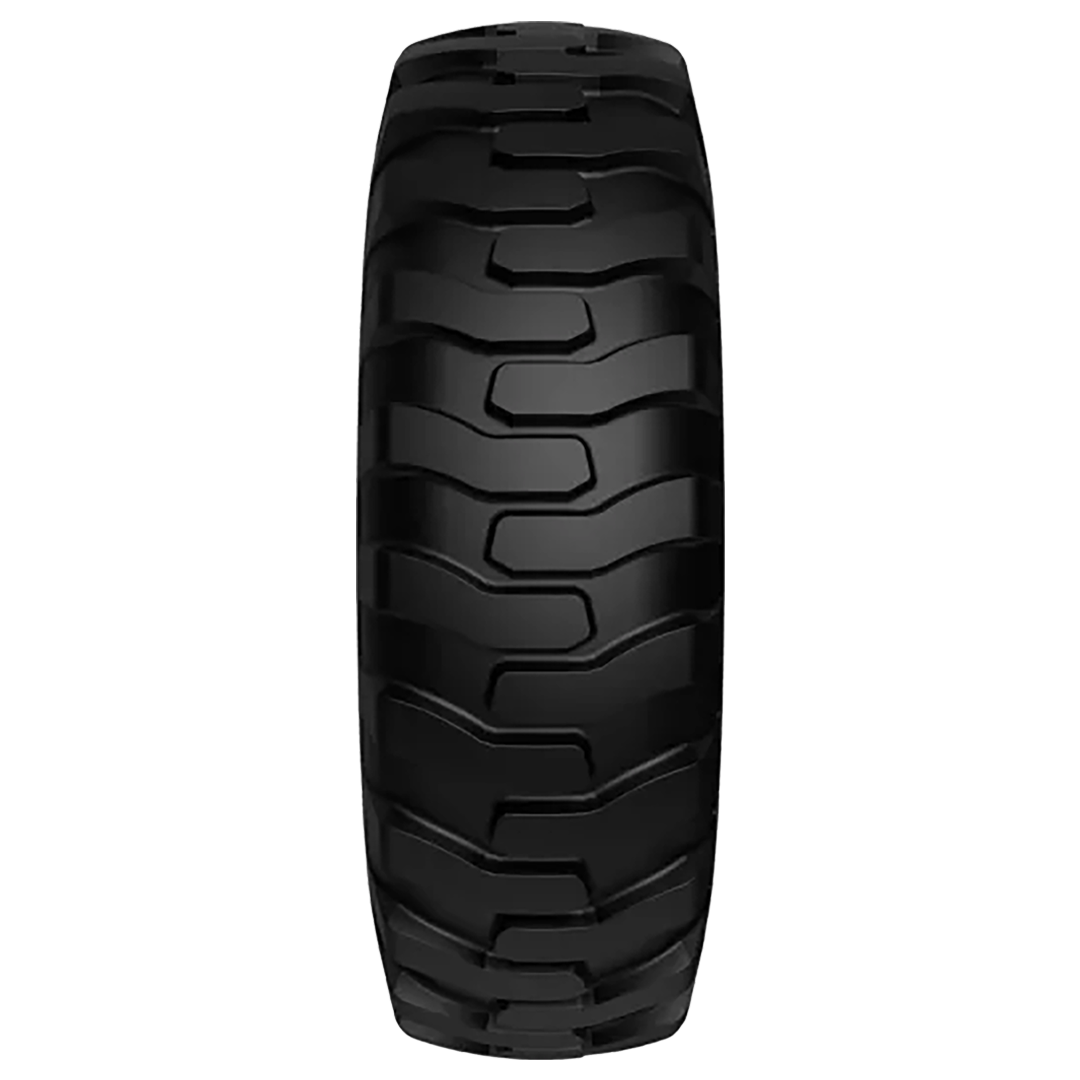

Alternate continuous lugs with high contact areas ensure maximum stability & load distribution.
Tough casing for excellent durability.
Superior tread compound with high resistance to wear, tear, & cuts.

TYRE SIZE	TUBE (TT/TL)	RIM	PR	UNLoADED DIMENSION		SLR (mm)	RC (mm)	LOAD CARRYING CAPACITY
TYRE SIZE	TUBE (TT/TL)	RIM	PR	Section Width (mm)	Overall Diameter (mm)	SLR (mm)	RC (mm)	Infl. Pressure (bar)	Max. Speed (kmph)	Max. Load (kg)
9.00-20	TT	7.0X20	14	260	1040	468	/	6.9	15	5805
10.00-20	TT	7.0X20	16	285	1075	480	3125	7.9	15	6700
12.00-20	TT	5.5X20	28	315	115	515	3305	10	15	9460
