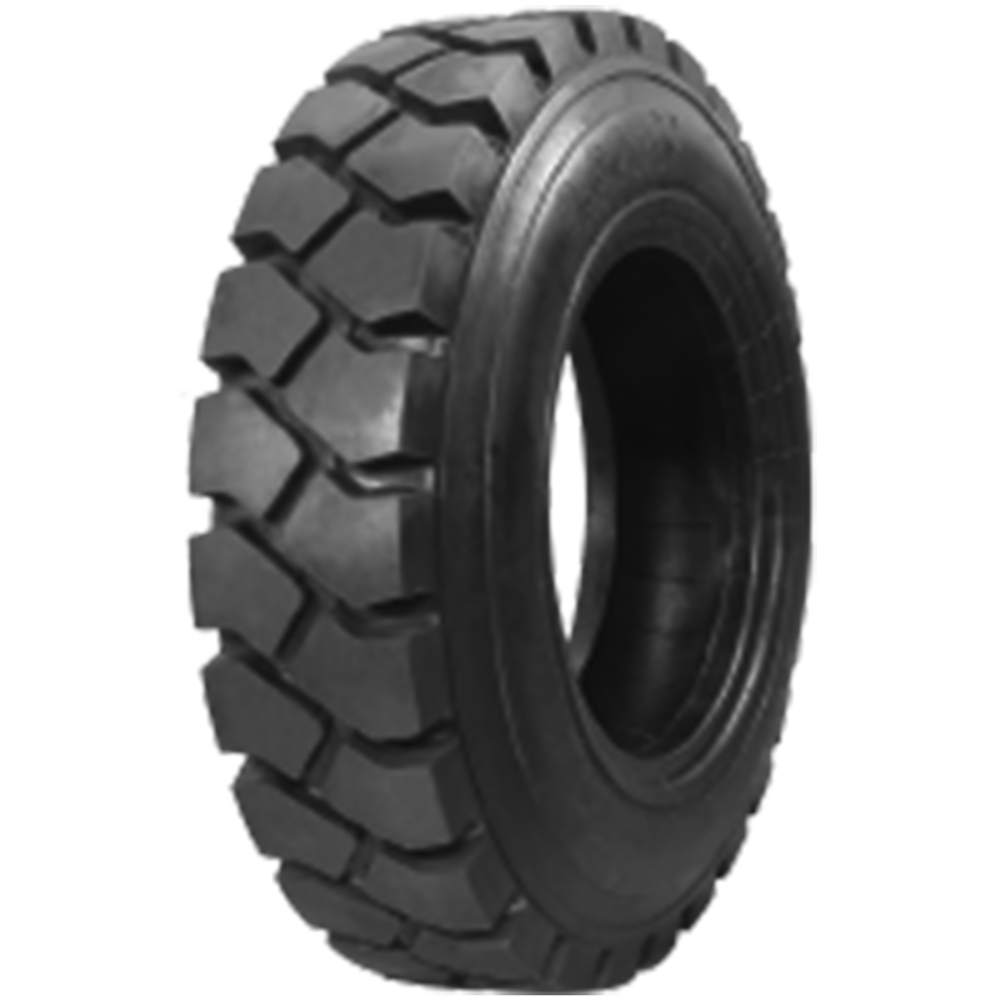

W-9B

Applications: forklift vehicles operating in port, airport, foctory and warehouse sites, etc.
Special compound producing good cutting, wear resistances, long lift service.
Wide and thick tread design providing good ground contact, traction and self-cleaning

TYRE SIZE	TUBE (TT/TL)	RIM	PR	SECTION WIDTH (mm)	OVERALL DIAMETER (mm)	TREAD DEPTH	LOAD CAPACITY		WEIGHT(kg)
TYRE SIZE	TUBE (TT/TL)	RIM	PR	SECTION WIDTH (mm)	OVERALL DIAMETER (mm)	TREAD DEPTH	Drive (kg)	Steer (kg)	WEIGHT(kg)
6.00-9	TT	4.00E	10	160	540	10.0	1505	1270	/
7.00-12	TT	5.00S	/	190	676	14	2375	2005	/
7.00-15	TT	5.00F	/	200	750	15.0	2870	2420	/
250-15	TT	7.50	16	250	735	20	4355	3350	/
2.50-15	TT	7.50	16	250	735	20	4355	3350	/
9.00-20	TT	7.00	18	259	1018	22	4685	2970	/
355/65-15	TT	9.75	28	330	841	23.0	6000	5250	/
355/65-15	TT	9.75	28	330	841	23.0	6000	5250	/
355/65-15	TT	9.75	28	330	841	23.0	6000	5250	/
3.00-15	/	/	/	/	/	/	/	/	/
18X7-8	TT	4.33R	14	173	465	10	1505	1270	/
6.50-10	TT	5.00F	10	175	590	12	1655	1400	/
7.00-12	TT	5.00S	10	190	676	12	2375	2005	/
3.00-15 (315/70-15)	TT	8.00	20	300	840	20	6500	5000	/
7.00-15	TT	5.50F	12	200	750	15	2870	2420	/
28X9-15	TT	7	14	215	704	14	3050	2575	/
6.00-9	TT	4.00E	10	160	540	10	1505	1270	/
